Tuesday, January 10, 2012

Research Status Update

The following schematic is the initial design of the hybrid rocket motor that will be used to test paraffin fuels. It is critical to the experiment that the forward closure be designed with adequate space for the nitrous oxide injector assembly and an internal pressure tap. The second injector design was selected over the first since is allows for the maximum amount of space for the essential features and the snap ring used to retain the closure. The closure will be machined out of stock aluminum on my 7x16 precision metal lathe. One hole will be drilled to depth and taped for 1/8" NPT pipe threads in the center of the inside face of the closure, allowing the injector to be connected. A second hole will be drilled and taped for 1/8" NPT threads on the external face, off-set by about 1/8", for the nitrous inflow. Adjacent to it and off-set substantially from the center, another hole is drilled and taped for 1/16" NPT threads, forming a pressure tap. This hole is extended by drilling through with a smaller diameter.  Operation of the motor is as follows:
  1. The ammonium perchlorate composite pre-heater grain is lit by electrical means
  2.  Fuel in the core is heated past its ignition temperature at the surface by the hot gas flow produced by the pre-heater.
  3. The thermoplastic tubing used to prevent nitrous flow through the injector is melted by the burning pre-heater.
  4. Once the thermoplastic tubing is melted through, nitrous oxide flows through the injector and into the combustion port.
  5. Fuel in the port is combusted with the injected flow of nitrous oxide, sustaining hybrid rocket motor operation.
  6. Operation is automatically terminated when the nitrous oxide supply is depleted. The total amount of nitrous oxide allowed to flow into the motor is slightly less than the projected combustion O/F ratio times the total mass of fuel in the motor. This is a precaution that prevents the fuel and liner from being completely consumed, subsequently causing the motor casing to fail due to exposure to combustion gases.
Two pressures are collected over time. The first is the nitrous line pressure before entering the injector and the other being the pressure inside the motor. This differential pressure across the injector orifice is proportional to the square of the oxidizer flow rate. Also as the Mathematical Construct of Data Acquisition would suggest, knowing the instantaneous internal motor pressure of the motor, along with information about the nozzle throat area, total propellant consumed, and the propellant combination's characteristic velocity (a function of adiabatic flame temperature and product molar mass), allows for the determination of instantaneous regression information. Characteristic velocity data will be determined experimentally and theoretically using NASA's CEA code.

Two Taber 0-2000 psi pressure transducers are used in order to measure these pressures in terms of an amplified output voltage. A basic instrumentation amplifier can be seen in my last post. These transducers utilize a resistor bridge that deforms under pressure, varying the electric potential across the output leads given a constant input potential. Moreover, the connection of a resistor across an input terminal to its corresponding output terminal can simulate a measured pressure in terms of output voltage. In the documentation for the transducers, several data points are given as resistances and corresponding simulated pressures. Using a power regression, one determines the relationship:
P=5558.781 * R^(-.99808393)
Transducer Resistor Bridge Schematic
 For an arbitrary constant input voltage between 10 and 15 volts. A voltage regulator has been constructed to supply a constant 12 volts to each transducer. Several pressures will be simulated and the amplified output voltages at constant gain recorded. These data will provide a calibration curve for the sensors that can be used as long as the input is 12 volts and the gain is constant.
In other words: Resistance ==> Pressure <==> Voltage

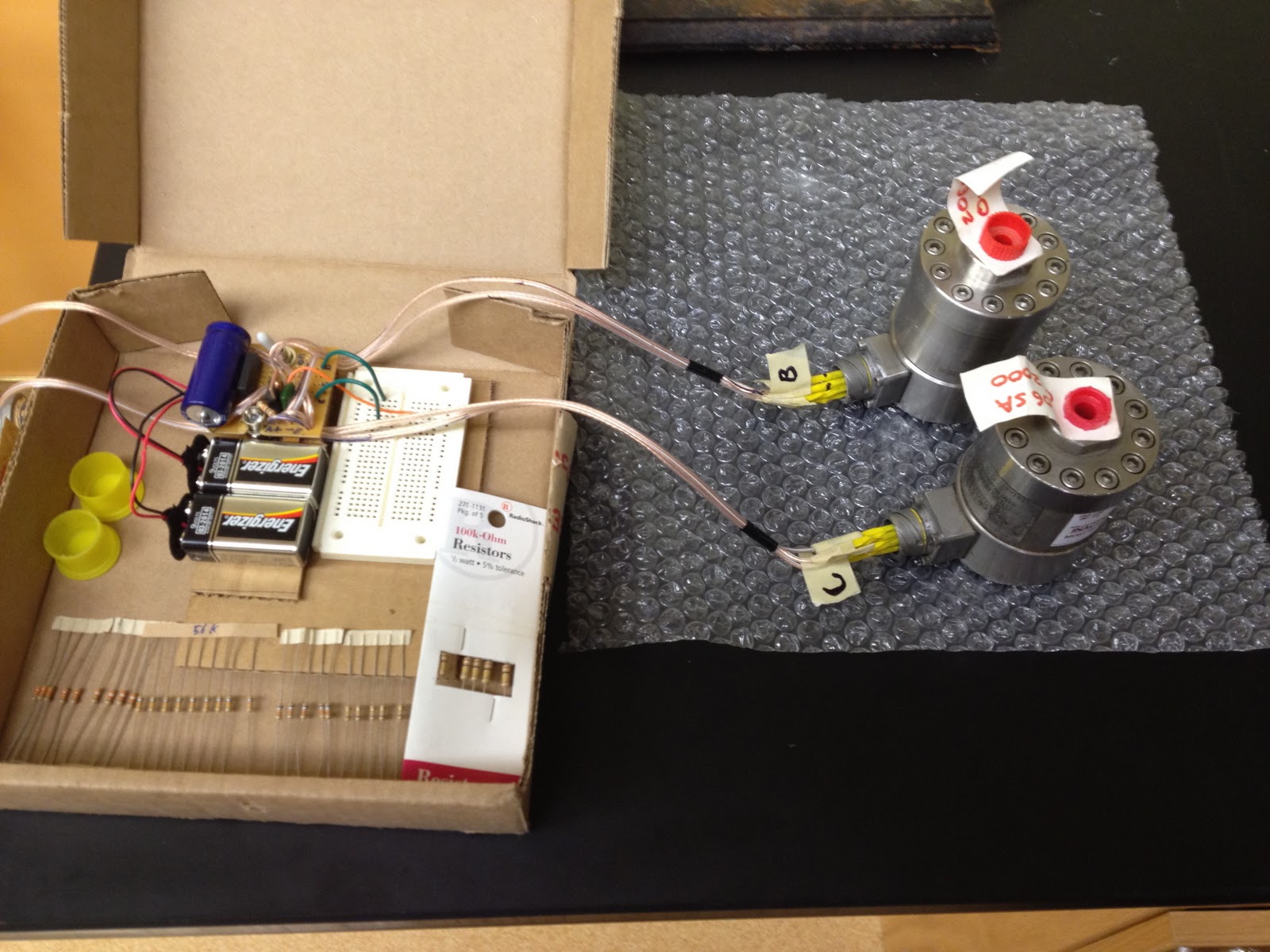

Voltage Regulator Connected to the Transducers

Voltage Regulator With Calibration Resistors
I have begun work on the oxidizer feed system. On Tuesday, I went out to a local automotive shop specializing in racing and acquired a 20lb cylinder of nitrous oxide. This should be enough to run all of my trials on a single fill. All of the parts for the remainder of the oxidizer feed system have been ordered from McMaster Carr and should arrive early next week. I decided to use a 72 cubic inch high pressure cylinder that I had (for paintball) to store the nitrous oxide in individual trials. With 200 g of propellant and an O/F of ~3.5, over 90 cubic inches of liquid nitrous would be needed. Therefore, the 72 cubic inch tank should work perfectly. The tank was drained and the valve assembly removed and disassembled. Removing the regulator, I turned the remaining threaded part that connects to the tank itself on the lathe. A wider port was bored and will be taped for 1/4" NPT threads to accommodate higher flow rates. Also, a hole will be drilled and taped for 1/8" NPT threads at the opposite end of the cylinder. A ball valve and .029" orifice plug will be installed here. This assembly will vent the excess air and nitrous oxide as the liquid nitrous fills the tank. Once filling has ended, the valve is closed, preventing further venting.
Oxidizer Feed Schematic
